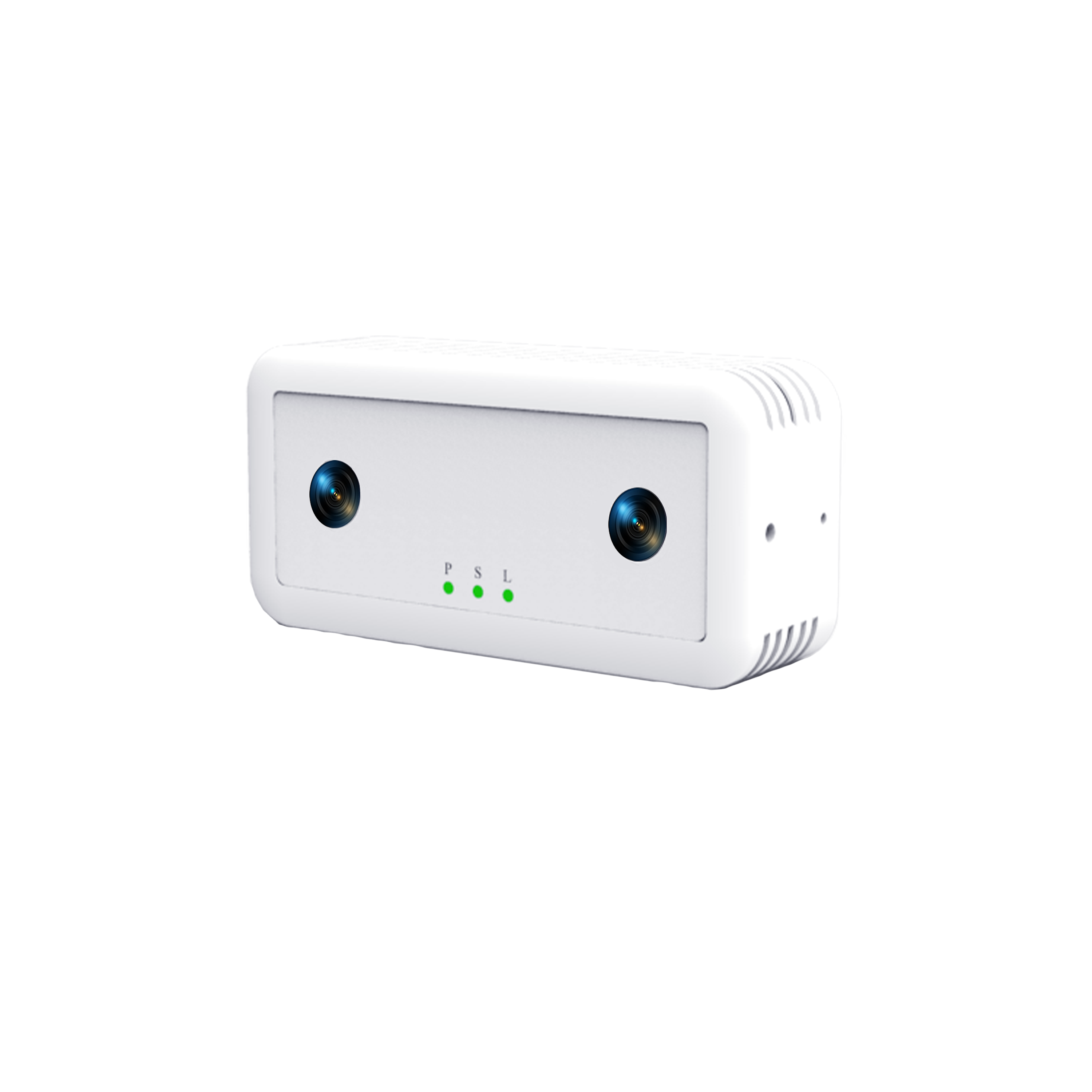

Automatic People Counter
The Sensmode® automatic people counter seamlessly integrates image acquisition, passenger flow analysis, and network data transmission. Equipped with self-developed AI algorithms, it achieves an accuracy rate of over 98%. The system detects individuals entering, passing through, and lingering, making it highly suitable for various scenarios such as retail stores, shopping malls, tourist attractions, and event venues.
Product Features
-
High accuracy & smart filtering
Achieves over 98% statistical accuracy.
Effectively filters out luggage and other non-human objects. -
Reliable performance in any lighting condition
Functions efficiently under complex lighting conditions, including backlighting, dim lighting, and strong light environments.
-
Flexible interface & customizable protocols
Offers open and diverse application interfaces.
Supports flexible customization of data protocols to meet specific requirements. -
Designed for large-scale traffic monitoring
Features a wide field of view, making it ideal for gate-style entrances.
Supports multi-device linkage for monitoring larger areas. -
Integrated counter & network camera
Supports offline storage, ensuring uninterrupted data transmission.
Offers Wi-Fi connectivity for seamless data access. -
Seamless network integration
Compatible with both Category 5 network cables and Wi-Fi connections.
-
Flexible installation options
Supporting heights from 1.5 to 6 meters.
Supports ceiling-mounted, suspended, and embedded installation methods.
Performance Parameter
Product Name
Automatic People Counter
-
Visual parameters
Viewing angle
horizontal 100°，vertical 70°
-
Function Parameter
Height range
2.2m~6.0m
Coverage
1.2m~5.5m
Filter out height
0.5m~1.2m
-
Technical Parameter
Power
3.2W~3.6W
Power supply mode
POE（802.3af/at）/ DC-12V
Network
class 5 cable/WI-FI
Addressing
static IP/DHCP
Offline cache
90 days
Data upload method
HTTP POST/HTTPS POST/FTP/SFTP/MQTT
Data expansion interface
485 interface x 1/6V~24V IO input x 1
-
Work environment
Operation temperature
0°C~45 °C
Working humidity
20% ~ 80 %
Storage temperature
-20°C~50 °C
Storage humidity
20%~ 80%
-
Package
Structural dimensions (mm)
143 x 70 x 40
Weight (g)
324
Core Advantages
-
1
High-precision 3D detection
Compact and lightweight design, allowing easy installation in narrow spaces.
-
2
Real-time analysis & instant feedback
Supports real-time data acquisition and instant feedback through system integration. |Enables real-time monitoring of passenger flow, helping businesses and managers make quick, data-driven decisions.
-
3
Intelligent target differentiation
Accurately distinguishes between different objects, such as children and non-human items (e.g., carts, luggage), preventing miscounts.
-
4
Compact & versatile embedded design
Small, discreet form factor for effortless installation in confined spaces.
-
5
Easy installation & maintenance
Simple design for quick installation without complex operations or additional equipment.
-
6
Data security & privacy protection
Utilizes a head-and-shoulder model algorithm to ensure privacy compliance. |Adheres to national data protection regulations, making it suitable for use in sensitive environments.
Application Scenarios
